Electrification X API overview¶

Navigation¶

• Entity relationship diagram
• Hierarchical structure of entities in Electrification X
• Available entities
  • User
  • Customer
  • Partition
  • Location
  • Assets
  • Measurements
  • MeasurementValue
  • Aggregate

Entity relationship diagram¶

classDiagram
direction LR

class User
class Customer
class Partition
class Location
class Asset
class Measurement
class MeasurementValue
class Aggreate

User "N" --> "1" Customer
Customer "1" --> "N" Partition
Partition "1" --> "N" Location
Location "1" --> "N" Asset
Location "1" --> "N" Measurement
Asset "1" <-- "N" Measurement
Measurement "1" --> "N" MeasurementValue
Aggreate --|> MeasurementValue

Hierarchical structure of entities in Electrification X¶

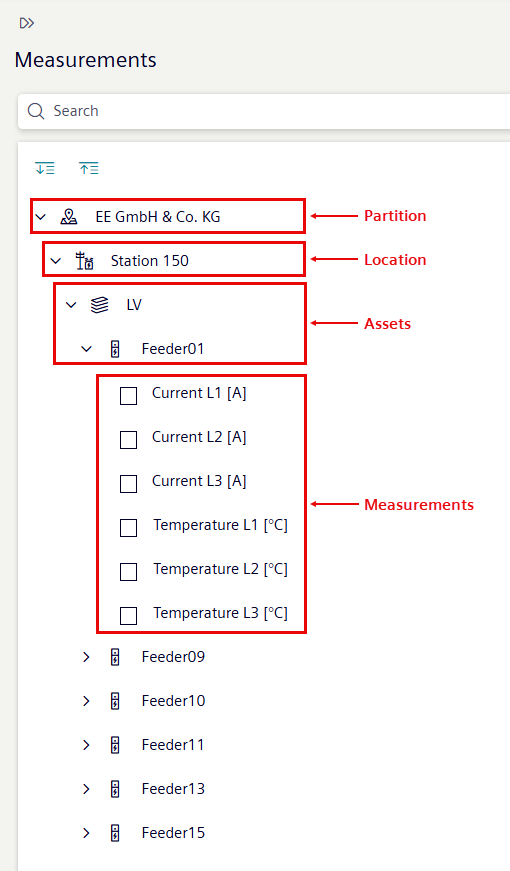

The entities in Electrification X follow a hierarchical structure:

Available entities¶

User¶

In Electrification X, a user is a defined entity with specific access rights, roles, and permissions.

Customer¶

In Electrification X, a customer is a broader entity that represents the organization or entity utilizing Electrification X platform.

Partition¶

In Electrification X, a partition is a specific defined scope of work, tasks, or operational domain that an individual or team is accountable for.

Location¶

In Electrification X, a location is a specific site, facility, or geographical point, e.g. a station.

Assets¶

In Electrification X, an asset is electrical infrastructure and equipment critical for energy distribution and electrification. An asset is a logical unit which can consist of multiple physical devices. Examples for assets are:

• Transformers
• Circuit breakers
• Switchgear
• Feeders
• EV charging stations

Assets are represented in a hierarchical structure within the Electrification X application. In the asset hierarchy, measurement data can be accessed by traversing the asset structure, with each asset providing access to its associated measurement values.

Measurements¶

In Electrification X, a measurement is a data point that represents a quantitative observation or reading of a parameter, e.g. the ambient humidity of a station.

MeasurementValue¶

The MeasurementValue is the aggregated value of a measurement over the specified time period.

Aggregate¶

The values are aggregated for the specified start time, end time, and interval. You can select an interval of 15 minutes.
